Control Room User Guide¶
Last changes: Documentation changelog
The FullMag Control Room is the interactive browser workspace and authoring companion for the
FullMag micromagnetics platform. Running inside your Docker Compose DEV group (typically at
http://127.0.0.1:3197), it pairs a live visual interface with the ProblemIR pipeline and runtime
APIs so you can build models, inspect 3D/2D fields, analyze scalar and spectral plots, and watch
live Python sessions (fm.connect()) update in real time.
Model edits commit typed authoring transactions and re-lower through the study/ProblemIR pipeline;
layout, active tabs, and visualization controls remain client-side UI state. Exported scripts preserve
supported authored models, while Control Room capability register tracks backend capabilities
that do not yet expose a dedicated UI editor.
Start Screen Hub & Multi-Instance Sessions¶
When no project workspace is active—or when you return via the header Home navigation button—the Start Screen serves as the workspace hub:
The Start Screen launcher exposes empty FDM/FEM problem creation, benchmark templates, file imports (.mif, .mx3, .mph, .fms), recent projects, and active sessions.¶
From the Start Screen you can:
Launch a new study: open an empty FDM simulation (
Ctrl+N), an empty FEM simulation (Ctrl+Shift+N), or browse ready-made benchmarks under From template (Ctrl+T, saved as canonical Python.pyscripts).Attach to live Python sessions: sessions created by an external script calling
fm.connect()appear under Active simulations with their live lifecycle status pill so you can jump straight into the shared 3D/2D workspace.Work across multiple DEV instances: the header Instance Tab Strip lets you switch between multiple running FullMag instances and sessions (
/session/<slug>,/instance/<port>) without leaving the workspace shell.
Built-in templates (µMAG Standard Problem 4, spin-wave dispersion, FMR, and skyrmion benchmarks) ready to launch into a live session.¶
Active live Python sessions (fm.connect()) detected on the runtime and surfaced for interactive inspection.¶
Multi-instance session switching across running Control Room ports and workspaces.¶
Workspace Layout & Themes¶
Inside an open project or active session, the Control Room organizes controls around a single unified workspace shell shared by both FDM and FEM studies:

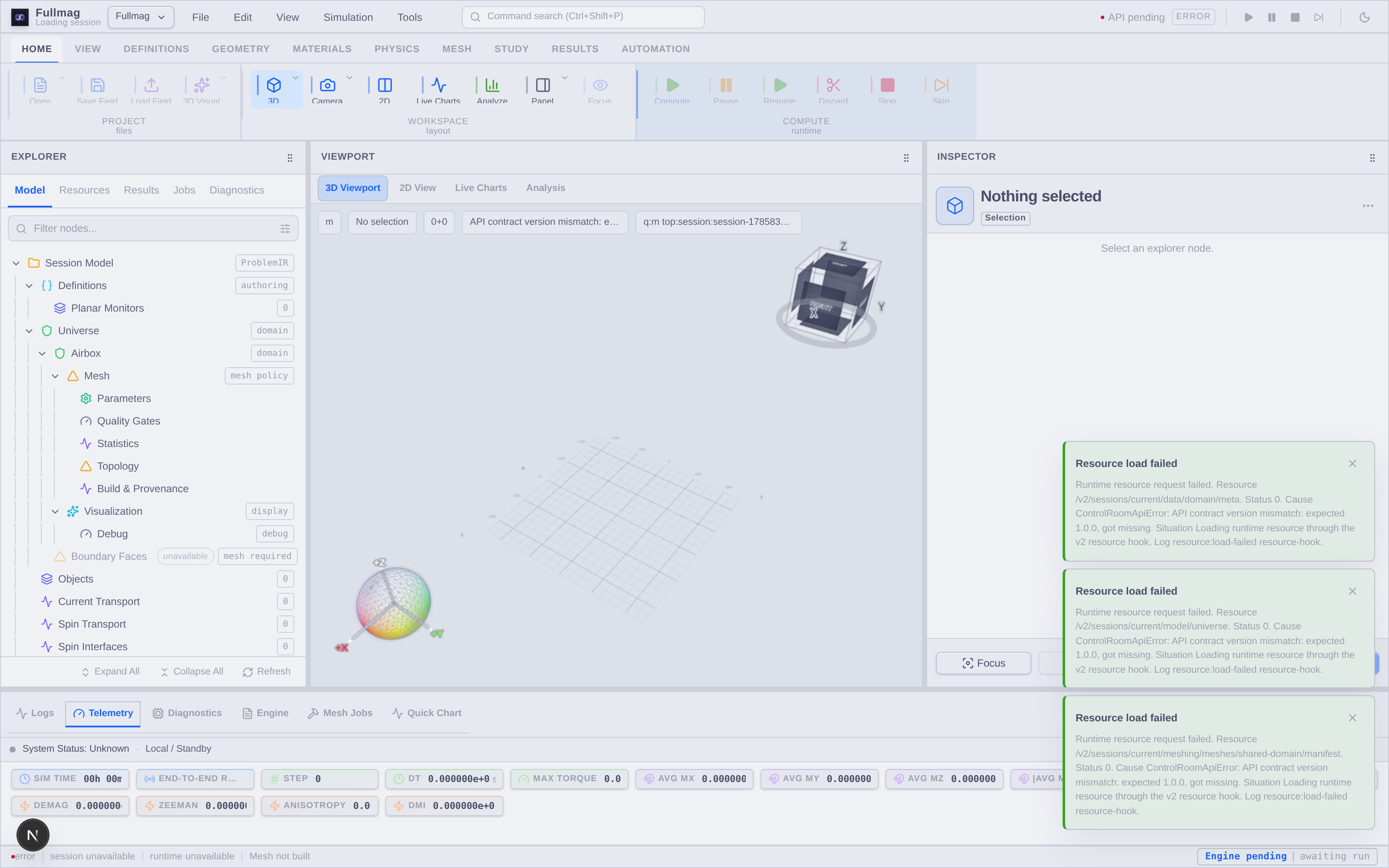

Control Room workspace overview in the default Catppuccin Mocha (dark) theme.¶
Region |
Component |
Primary Purpose |
|---|---|---|
Top Bar |
App Menu, Session Indicator & Theme Switcher |
Navigate Home, switch multi-instance tabs, open Command Search ( |
Top Ribbon |
Ribbon Toolbar Strip |
Contextual tabs ( |
Left Dock |
Semantic Explorer Panel |
Navigate five dedicated explorer tabs ( |
Center Stage |
3D Viewport / 2D Planar Field Map / Split Plots |
WebGL 3D vector & mesh canvas, 2D planar slice inspector, and optional companion analysis viewports. |
Right Dock |
Contextual Inspector Panel |
Property editor for the selected Explorer node with explicit draft-and-apply isolation. |
Bottom Dock |
Footer Analysis & Telemetry |
Tabbed workspace footer hosting |
Footer Bar |
Status & Governance Strip |
Continuous session connection dot, WebSocket realtime status, status freshness, resolved engine/device lane, mesh state, and simulation method badge. |
Use the Theme Switcher in the top-right header (or Command Search) to switch instantaneously between Catppuccin Mocha (dark) and Catppuccin Latte (light):
The same unified workspace rendered in Catppuccin Latte (light) theme.¶
Ribbon Toolbar Strip & Command Search¶
The Ribbon Toolbar Strip groups modeling, physics, meshing, study, and visualization actions
across active tabs (Workspace, View, Geometry, Materials, Physics, Mesh, Study,
Results, plus contextual Analysis when inspecting frequency-domain or saved result nodes).
ribbonTabHasContent hides tabs whose only contributions are preview: true placeholders (such as
Definitions and Automation), and remaining controls respect active session capabilities so
FEM-only mesh actions stay hidden or gated when working in an FDM study.
Geometry, Physics, and Canonical Python Export¶
The Geometry tab groups primitive creation (Box, Cylinder, Sphere, Microstrip, CPW, Thin Film), transforms (Move, Rotate, Scale), lifecycle validation (Build Geometry, Apply Draft, Validate), and camera focus commands (Focus Selected, Frame All).¶
Primitives & Antennas: Create standard ferromagnetic bodies (
Box,Cylinder,Sphere,Thin Film) or inductive antennas (Microstrip,CPW). For boolean compositions and file-based geometry workflows, use the Python DSL (Boolean geometry operations and Imported geometry).Transforms, Lifecycle & Focus: Apply
Move,Rotate, orScaleedits (or canvas snap/camera shortcutsQ/G), runBuild Geometry,Apply Draft, orValidate, and frame objects in the 3D viewport (Focus Selected,Frame All).
The Physics tab configures global drives, spin transport / interface resources, and micromagnetic energy terms.¶
Micromagnetic Interactions: Add and inspect Heisenberg exchange \(A_{\text{ex}}\), demagnetization (FDM FFT convolution or FEM Poisson airbox/BEM), external Zeeman drives \(\mathbf{H}_{\text{ext}}(t)\), uniaxial/cubic anisotropy, bulk/interfacial DMI, and spin-transport resources (STT/SOT/SHE and spin interfaces), bounded by the resolved lane capabilities.
Canonical Python export via File -> Save canonical copy as…, pairing with fm.export_script() in external fullmag.live sessions (Interactive Live Python & REPL). Placeholder Automation ribbon items marked preview: true stay hidden via stripRibbonPlaceholders.¶
Command Search (Ctrl+Shift+P)¶
Click Command search in the top header or press Ctrl + Shift + P to open the global
command palette and filter workspace commands, panel toggles, camera framing actions, and theme
switches by title, group, shortcut, or command ID:
Global Command Search overlay triggered from the top bar or via Ctrl+Shift+P.¶
Semantic Explorer Panel¶
The Explorer Panel on the left provides five tabs—Model, Resources, Results, Jobs, and Diagnostics—keeping structural authoring, compute artifacts, and job history strictly separated:
Hierarchical Model tree displaying geometry objects, material zones, physical interactions, meshing policies, ordered study stages, and monitors.¶
Model: Hierarchical model tree covering Objects and sub-regions, Materials, Physics terms and couplings, Discretization & Mesh, Study & Ordered Stages, and configured Outputs / Planar Monitors.
Resources: Shared domain manifests, material libraries, field/quantity catalogs, and session assets.
Results: Current run outputs alongside browsable Saved Results history with comparison and playback controls.
Jobs: Active and completed mesh builds, stage commands, and compute queue history.
Diagnostics: Live telemetry, solver profiling summaries, and readiness diagnostics.
Selecting any node in the Explorer updates the Inspector Panel on the right without losing uncommitted edits elsewhere in the model.
Visualization: 3D Viewport, 2D Planar Field Maps, & Analysis Plots¶
The center canvas switches smoothly between the 3D WebGL scene, the 2D Planar Field Map, and split/companion scientific chart panels.
Interactive 3D WebGL Viewport¶

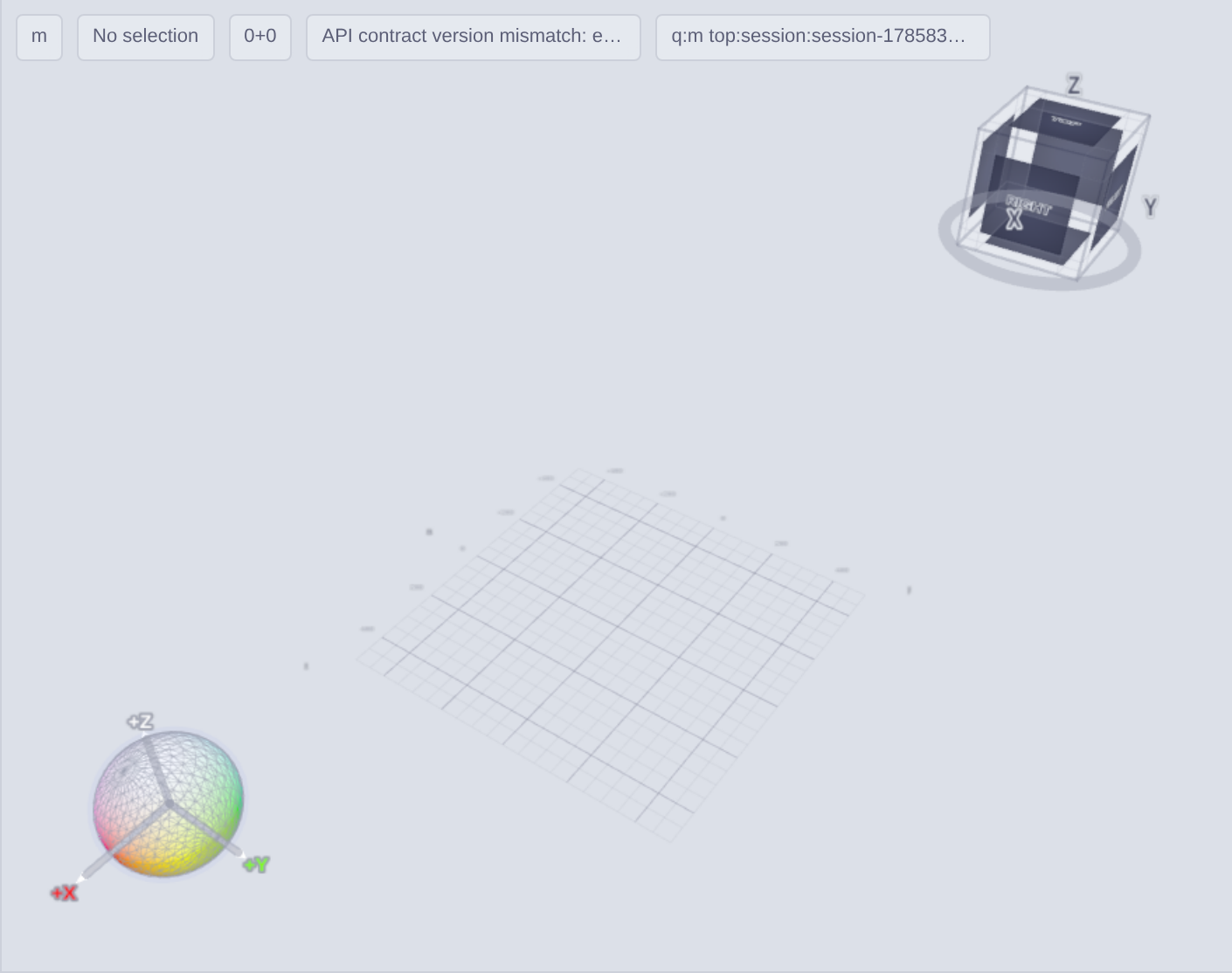

The Three.js WebGL 3D viewport displaying normalized magnetization glyphs, surface color projection, orientation cube HUD, and colorbar legend.¶
Vector Glyphs & Field Quantities: Visualize binary-streamed
FMVPfields (\(\mathbf{m}\), \(\mathbf{H}_{\text{eff}}\), \(\mathbf{H}_{\text{demag}}\), spin accumulation, or mode profiles) colored by component (\(m_x, m_y, m_z\)) or magnitude using scientific colormaps (viridis, plasma, coolwarm, hsv).Surface Projection Modes: Switch between direct nodal interpolation, boundary surface faces, or depth-averaged projections, and toggle perspective/orthographic projection from the View ribbon.
FEM Meshes & Poisson Airbox: Inspect conformal tetrahedral bodies together with surrounding FEM Poisson airbox extents and wireframe boundaries:
Conformal tetrahedral ferromagnet mesh paired with the exterior FEM Poisson airbox wireframe.¶
2D Planar Field Map¶
Switch to the Planar 2D view to cut live XY, XZ, or YZ sections across FDM grids or FEM
tetrahedral volumes with streamline, contour, vector-glyph, mesh, and line-profile measurement tools:
2D Planar Field Map showing cross-section controls, layer visibility toggles, vector/contour overlays, and snapshot scrubbing.¶
Live Charts, Hysteresis Loops, & Spectral Plots¶
Bottom-docked and companion ECharts views monitor live time-domain dynamics, hysteresis branches, and FEM eigenmode dispersion / driven frequency response:
Real-time streaming scalar trajectories (\(\langle m_x \rangle, \langle m_y \rangle, \langle m_z \rangle\) and magnetic energies) during an LLG run.¶
Interactive hysteresis curve \(M(H)\) with field-step playback and branch inspection.¶
FEM modal dispersion \(\omega(k)\) and driven frequency-response susceptibility spectra.¶
Semantic Inspector & Interactive Stage Re-Execution¶
The Inspector Panel on the right edits properties of the active Explorer selection using an explicit Draft -> Save / Apply -> Revision lifecycle so edits never silently corrupt an in-flight solve:
Inspector panel showing draft isolation before committing model mutations to the runtime session.¶
Geometry inspector configuring primitive shape dimensions (Kind: box, Size X/Y/Z), Placement, and explicit Revert / Apply draft actions.¶
Editing fields puts the panel into an explicit Draft state without mutating the running simulation.
Saving/applying submits an atomic transaction to the backend, updates the scene revision, and invalidates dependent mesh or study resources cleanly.
Selecting any stage under Study opens
StageInspectorFrameandStageInitialStateSelector:
Study stage inspector configuring stopping tolerances, output cadence, initial magnetization seed selection, and interactive stage re-execution.¶
Within the Execution section of a stage inspector, you can choose how the stage initializes
(From the configured Study flow, Study initial texture (m₀), Latest compatible state at start,
prepared preview magnetization, or a pinned saved stage result), compare authored recipes against
saved results, preview prior magnetization states in the 3D viewport, and re-run that stage without
rewriting the entire script.
Control Room crosswalk¶
Detailed frontend module references live under Control Room,
Semantic Inspectors, and Frontend Visualization. Use
Control Room capability register to verify whether any Python API parameter has an implemented
Control Room editor versus TODO: frontend support.
Python/API crosswalk¶
The runnable Python authoring API (fm.study(...) and fm.connect()) is authoritative. Consult
Interactive Live Python & REPL for live sessions and Python API for complete parameter
signatures and unit contracts.
Physics, limitations, and bibliography¶
Control Room views do not define separate physical equations; all governing equations, boundary conditions, and lane support matrices are owned by Backend.
Source-code index¶
apps/control-room/src/kernel/layout/WorkspaceShellClient.tsxandAppMenuBar.tsx— root workspace shell, Start Screen toggle, theme switcher (Catppuccin Mocha/Latte), Command Search (Ctrl+Shift+P), and header session controls.apps/control-room/src/modules/start/StartScreen.tsxandhome/ActiveSessions.tsx— Start Screen workspace hub, template browser, andfm.connect()active simulation list.apps/control-room/src/modules/ribbon/ribbonContributions.tsx— ribbon tab definitions and capability-gated actions.apps/control-room/src/modules/explorer/ExplorerTabBar.tsx— five Explorer tabs (Model,Resources,Results,Jobs,Diagnostics).apps/control-room/src/modules/inspector/panels/GeometryObjectPanel.tsx,StudyStageDraftEditor.tsx, andstages/StageInspectorFrame.tsx— explicit draft-and-apply editors and interactive stage re-execution withStageInitialStateSelector.apps/control-room/src/modules/status-bar/StatusBarModule.tsx— live status strip and footer diagnostics launchers.Control Room capability register — authoritative boundary between implemented UI editors and Python-only features.
Screenshots illustrate the Control Room user interface; they are not runtime, numerical convergence, or scientific qualification evidence.
